Location | Size | Screw Size | Other |
---|---|---|---|
Bow | 10" | 5/16" FH | 4-hole open-base aluminum |
Stern | 8" | 5/16" FH | 4-hole open-base aluminum |
Midship | 10" | 5/16" FH | 4-hole open-base stainless steel |
Traveller - Cam Cleat | Harken 150 | #10 | |
Mizzen sheet - Cam Cleat | Harken 150 | #10 | |
Mid-Rail Cleat | 7.5" | On Track | Schaefer 70-75 |
According to Skene's, the minimum cleat size for a line is 1" of cleat size for each 1/16" of line diameter. For example, a 5/16" line needs a minimum 5" cleat.
Garhauer 30-16 SL (single block with becket and snap shackle), 30-03US (two-sheave fiddle block with swivel shackle). 4:1 advantage. Attached to Hydrovane and end of mizzen boom. Sheet goes under boom to gooseneck, turns down with Harken 40mm carbo block (2636) to bottom of mizzen mast, turns up with Harken 40mm Carbo block (2636) to a Harken Cam-Matic 150 cam cleat.
Location | Manufacturer | Model | Fasteners | Other |
---|---|---|---|---|
Boom vang attachment | Schaefer | 78-99 | 5/16" x 2" flat head bolts (2) | 3,500 lbs. SWL (old 78-25 bent) standard Schaefer backing plate |
Port shroud | Schaefer | 78-25 | 3/8" x 1½" carriage bolts (2) | 3,000 lbs. SWL, 6"x3"x¼" Al 6061 backing plate |
Starboard shroud | Schaefer | 78-25 | 3/8" x 1½" carriage bolts (2) | 3,000 lbs. SWL, 6"x3"x¼" Al 6061 backing plate |
Edson #335 pedestal, serial number 18200. Pedestal is 3½" in diameter (the new ones are 4"). The wheel shaft is 1" in diameter. Wheel diameter is 32", tubing size is 7/8". Replaced the needle bearings in 2023. The needle bearing nearest the wheel disintegrated when I removed it. The Edson rebuild kit is 314-335.
The idler sheaves are all (4) B-218, 6" diameter. The Oilite bearings are 5/8" ID, 3/4" OD, and 3/4" length. The clevis pins are 5/8" diameter x 1.45".
Sprocket rolling chain 5/8"-#50, spacing of 2.2" per link. The wire is 1/4". Use a thimble at the take-up eyes (Edson). Two wire rope clamps with the "U-bolt" on the bitter end. Tighten them until the wire deforms. The eyebolt nuts are 5/16-18. Use a ½" wrench/socket.
Tension the wire so that there is 1" of deflection per 1' of free run (Edson).
Quadrant (Edson 614-10, 1.5" rudder post) is held on with four 3/8" x 1¼" stainless steel bolts with lock washers
Pedestal guard is 1" OD and 10.5" across from outside edges.
Lube cable with 30W oil on rag, while feeling for snags. Lube needle bearings on hub with Super Lube.
Lubrication | ||
---|---|---|
Component | Lubricant | Schedule |
Sheave bearings | 30W oil* | Monthly |
Wire rope | 30W oil | Annually |
Roller chain | 30W oil | Annually |
Pedestal needle bearings | Teflon (use syringe) | Annually |
*Or use diesel motor oil.
Spares on Willow:
Part | Edson Number |
---|---|
Chain and wire rope assembly (2' 5/8" ss chain, 9' 3/16" wire each leg) | 775-2B2D9 |
Wire rope clamps (4) stainless steel | 665ST-250 |
Take-up eyes (one pack of two) stainless steel | 618-1-312 |
Changing the control cables is next to impossible! Use an awl to align the cable carrier in the pedestal before inserting the screw. The cable to use for both throttle and transmission is a Teleflex 3300. 10 foot cable works fine.
May, 2002 — rebuilt the steering system (see Gotchas!). Replaced sheave bushings, sheave pins, wire, and chain.
Part | Dimensions | Edson Number | McMaster-Carr |
---|---|---|---|
Sheave bushings | 5/8" ID x 3/4" OD x 3/4" Length | 960-A-472-B | 6391K247 |
Sheave clevis pins | 5/8" OD x 1.46" grip length | 960-A-1301C |
Emergency Tiller Access—Nicro Marine 4" deck plate (Bronze). The o-ring is a dash 155.
March, 2009 - Rebuilt and repainted (Matterhorn White Interlux Perfection paint) 3/2009 pedestal system, including new idler sheave plate. For the Edson tiller arm for the autopilot, the clevis pin is 12mm (not 0.50") by 40mm usable length. Can't find a spare, so I have in my spares a 12mm partially-threaded bolt and 12mm nuts.
Hood System Sea Furl 5 (installed 5/05). Hood Yacht Systems (Bowmar Pompanette) 800-723-2766 (St. Petersburg, FL www.pompanette.com). Rebuilt in 2022 after the headstay chainplate failure.
The luff tape size is #6.
The two forward fairlead block for the roller furling line is a Schaeffer 300-35. The rest of the blocks are Schaefer 506-44 Clearstep outside lead furling block (<= ½" line, 750 SWL). The line is a double braid with 20' of the core removed at the drum end.
For easier furling, make sure that the forestay has sufficient tension, bearings turn easily without binding, and the blocks turn easily.
I mounted on the port side of the mast above the winch another mast winch pad with a Garhauer 11-11S rope clutch. This is for the jib halyard so that I can share the winch with the spinnaker and staysail halyards. Right now, there's only one rope clutch. However, I made the mast winch pad for three rope clutches, if needed.
The rudder stops were glassed into the hull nonsymmetrically. It's difficult to measure, but it appeared that the port one is further aft than the starboard one. This made it that the wheel turned~55° to starboard and ~45° to port. I placed a 3"x12"x 3⁄16" neoprene (50A durometer) strip folded over the rudder stop ends and held it in place with cable ties. For the port one, I also added 1.5" of 50A durometer neoprene under the strip to close up the potential rudder angle. Now, there are two full turns lock-to-lock and the angle is ~±40°.
Amco Marine 11.92 to 19.75' long, 2.5" & 2" (OD) tubes, line control. Amco marine was bought by Forespar and no longer exists. The line for extending the pole is 5/16" x 22' Sta-Set, white with blue tracer.

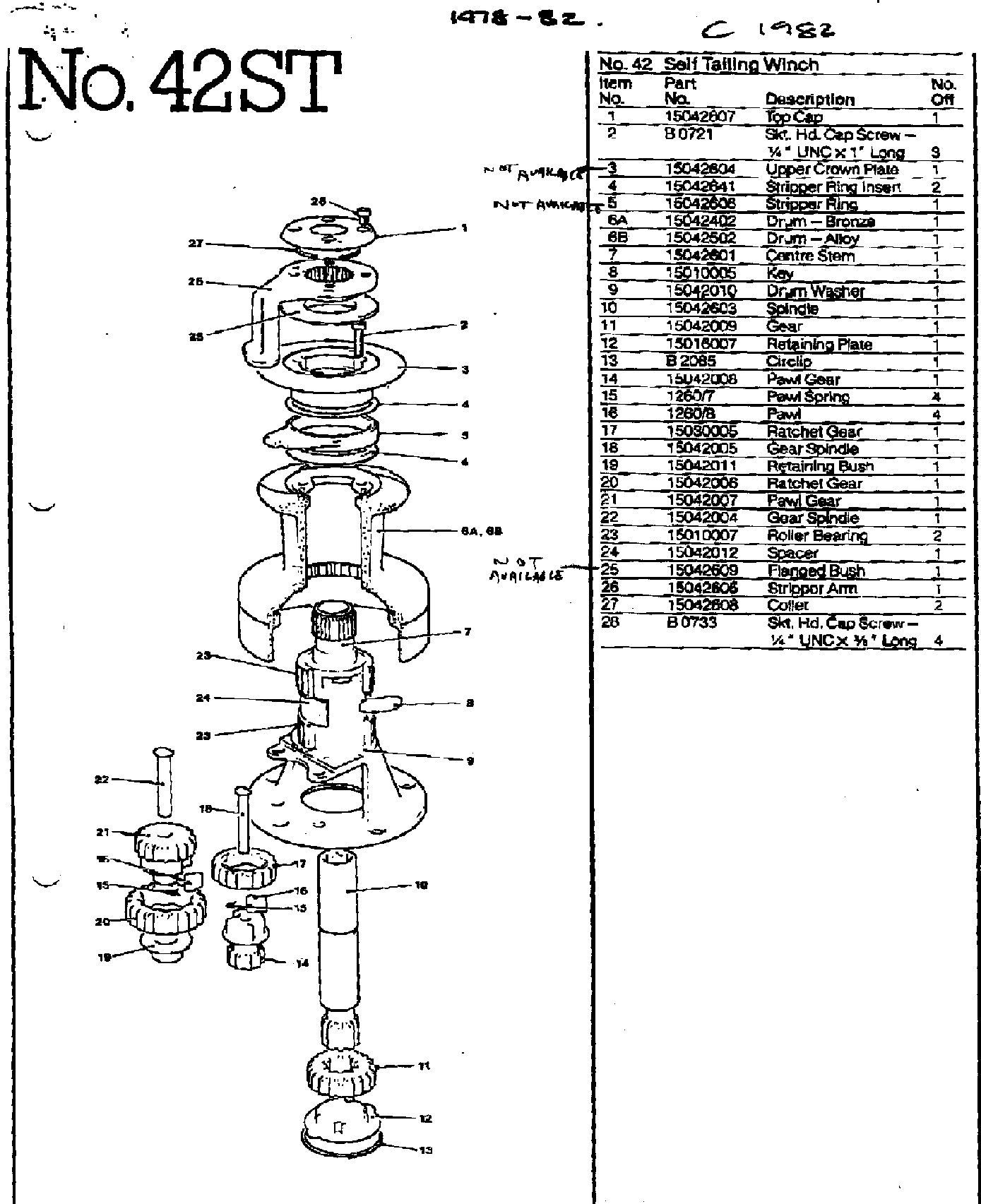

Winch Type/Size | Power Ratio | Location | Spares Kit | Line Size | Fixing | Comments | |
---|---|---|---|---|---|---|---|
1st | 2nd | ||||||
Andersen 52ST | 16.2:1 | 52.5:1 | Port jib sheet | 710008 | 5/16" to 5/8" (8-16mm) | 5/16"-18 x 3" FH SS screw | 0503-V24 (version 2.4) |
Andersen 52ST | 16.2:1 | 52.5:1 | Starboard jib sheet | 710008 | 5/16" to 5/8" (8-16mm) | 5/16"-18 x 3" FH SS screw | 9506V2-0 (version 2.0) |
Lewmar 16 | 7.9:1 | 16:1 | Main halyard | ≤1978 (Volume 1 Manual) | |||
Lewmar 16 | 7.9:1 | 16:1 | Jib halyard | 1980 (Volume 2 Manual) | |||
Lewmar 8 | 7.9:1 | — | Roller furler (port) | ||||
Lewmar 8 | 7.9:1 | — | Mainsail reefing on boom | Ronstan RF59 deadeyes with ferrules. | |||
Lewmar 6 | 6.8:1 | — | Mizzen halyard | Added 1999 (nothing there, before) | |||
Barlow 23 | ?? | 24:1 | Main sheet | Drum is 3" diameter |
Standard handle length of 10". Size 6 winch power computed with 8" handle
Winch handles — Lewmar model 29141121 (Chrome Winch Handle Lock-In (forged)). Rebuild kit 29140013 (lock-in mechanism).
For rebuilding the winches, use hi-temp wheel bearing grease for all gears (same as windlass). Use 3-in-1 oil or other light oil for pawls and springs.
Power Ratio = 2 x handle length x gear ratio ÷ drum diameter
Main sheet stopper — Lewmar D2 Superlock Rope Clutch, 1/2" to 9/16", model 2910-1414
Jib halyard rope clutch—Garhauer 11-11S (2021)
Traveller Hardware | |||
---|---|---|---|
Manufacturer | Part Number | Quantity | Description |
Harken | 1509 | 1 | Car (midrange long) (replacement ball bearings 1526 — 60 all bearings) |
Harken | 1515 | 2 | Double block |
Harken | 1519 | 2 | Double sheave traveller control (midrange) |
Harken | 1525 | 2 | Trim cap |
Harken | 1511 | 1 | High-beam track (1-1/16" x 5', midrange) |
Harken | 1985 | 2 | Dodger block conversion kit |
Harken | 222 | 2 | Upright lead block |
Bull's eye fairleads on boom for reefing lines — Ronstan RF59.
